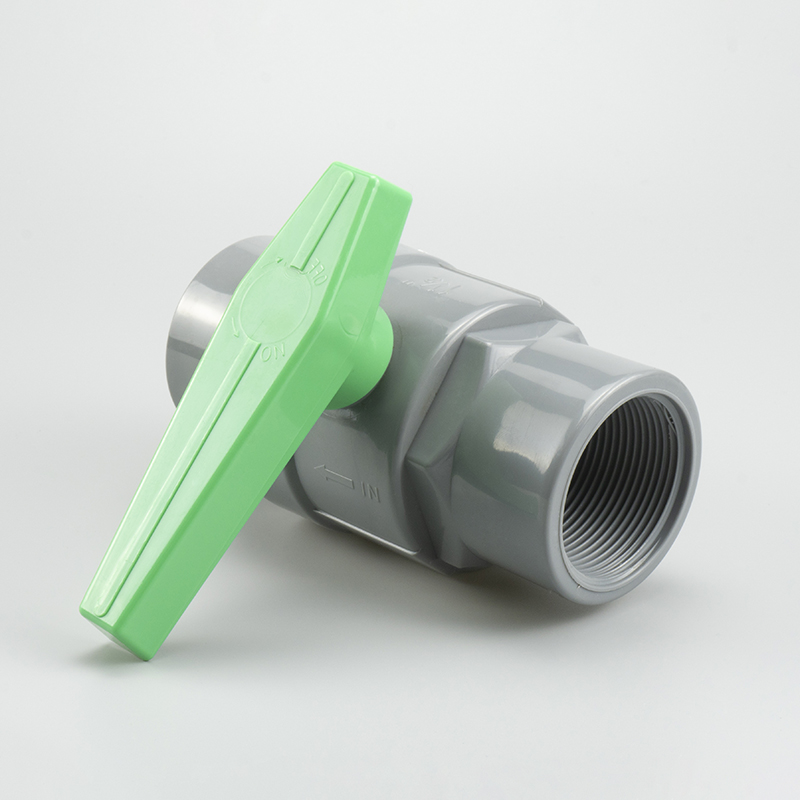

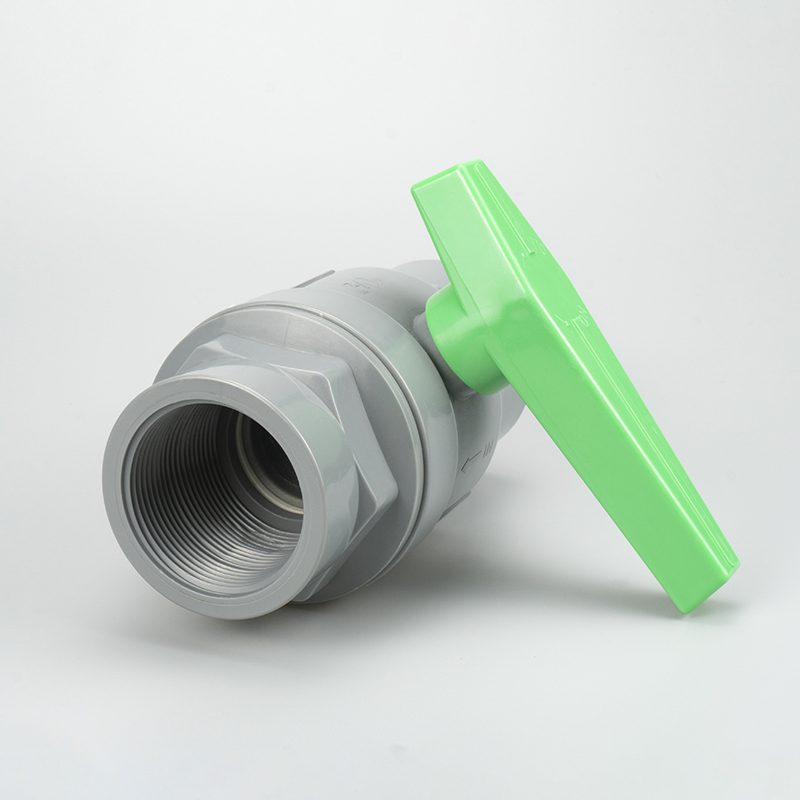

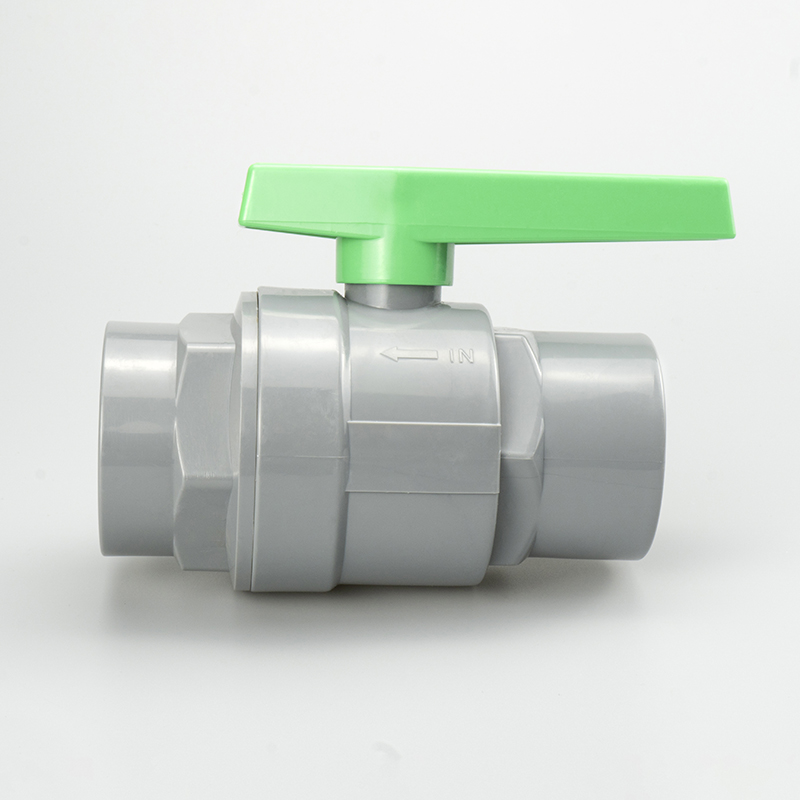

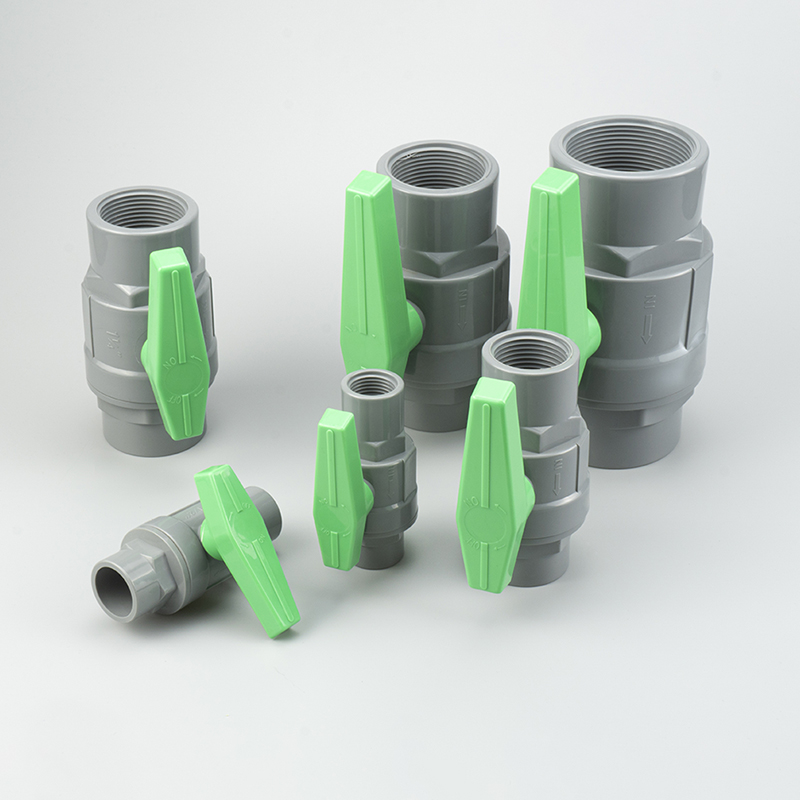

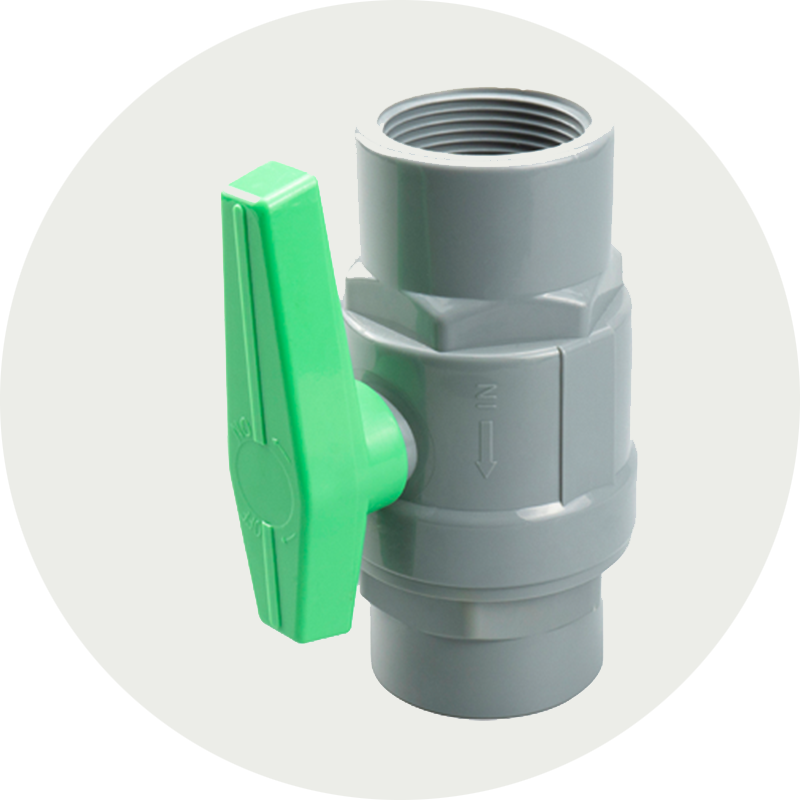

Top Kalite PVC boul Valv tiyo Fittings De-moso Valv boul ak manch vèt koulè plastik manch asye pur 3M valv

Deskripsyon kout:


  • Gwosè:1/2" - 4"
  • Fen jwenti:Socket (ANSI/DIN/JIS/BS)
    Fil (NPT/BSPT)
  • Presyon travay:1/2" - 2" PN16 = 232PSI
    2-1/2 "- 4" PN10 = 150PSI
  • Pwodwi detay

    FAQ

    Tags pwodwi

    Materyèl konpozan

    spesifikasyon nan materyèl

    NON. Pati Materyèl KANTITE
    1 UPVC 1
    2 STEM O-Ring EPDM,FPM(NBR) 1
    3 STEM POM 1
    4 BOUL ABS PLATING CHROM 1
    5 SYE SYE TPE,TPVC,TPO 2
    6 MANCH PVC/ABS 1



    Tablo konparezon paramèt gwosè modèl

    DIMANSYON Inite
    MODEL DN 15 20 25 32 40 50 65 80 100
    SIZE 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" Pous
    thd./nan NPT 14 14 11.5 11.5 11.5 11.5 8 8 8 mm
    BSPT 14 14 11 11 11 11 11 11 11 mm
    JIS I 20 20 24 26 30 31 45 48 53 mm
    d1 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7 mm
    d2 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.98 mm
    ANSI I 18 20 24 26 30 31 45 48 53 mm
    d1 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.76 mm
    d2 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.07 mm
    DIN I 18 20 24 26 30 31 45 48 53 mm
    d1 20.3 25.3 32.3 40.3 50.3 63.3 75.3 90.3 110.4 mm
    d2 20 25 32 40 50 63 75 90 110 mm
    d 15 19 24 30 34 45 55 70 85 mm
    H 37 55 66 73 81 91 99 121 134 mm
    A 68 80 94 100 110 136 170 210 236 mm
    L 77 91 103 111 123 146 178 210 255 mm
    D 32 37.5 44 52 60 74 93 110 135 mm
