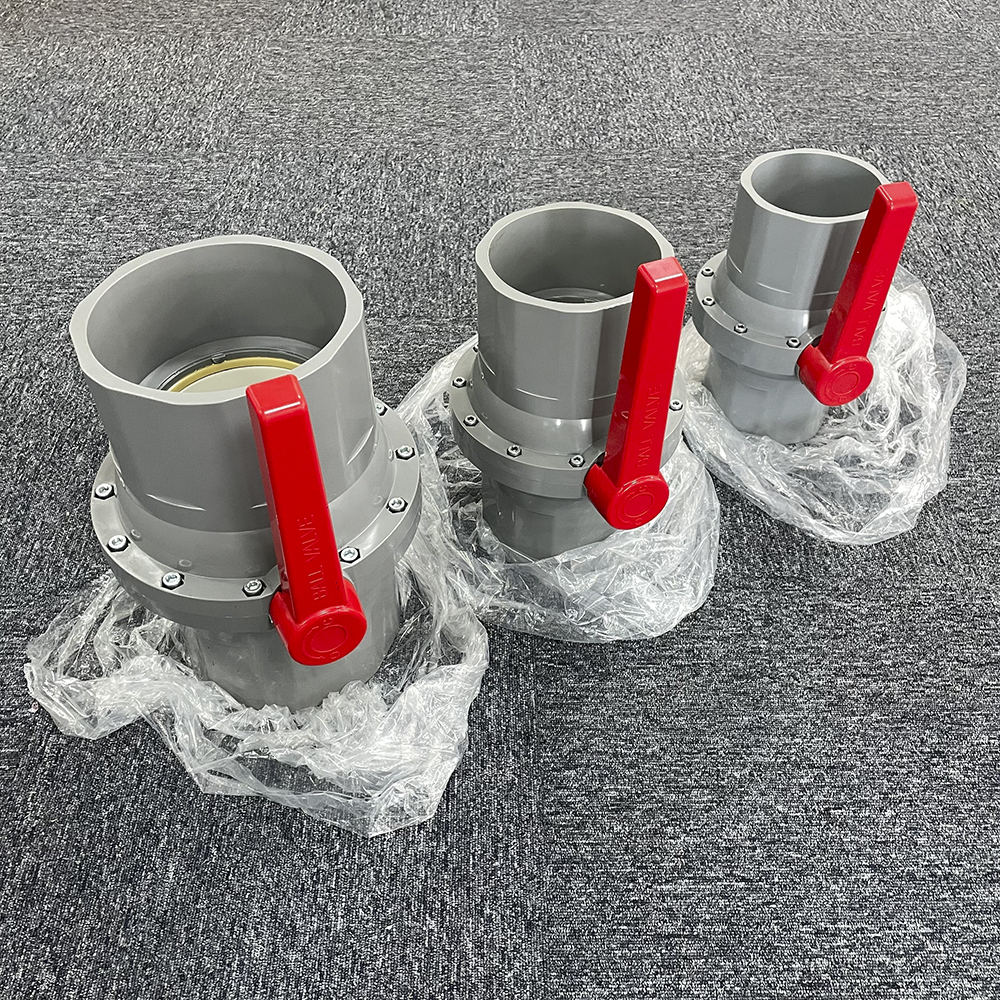

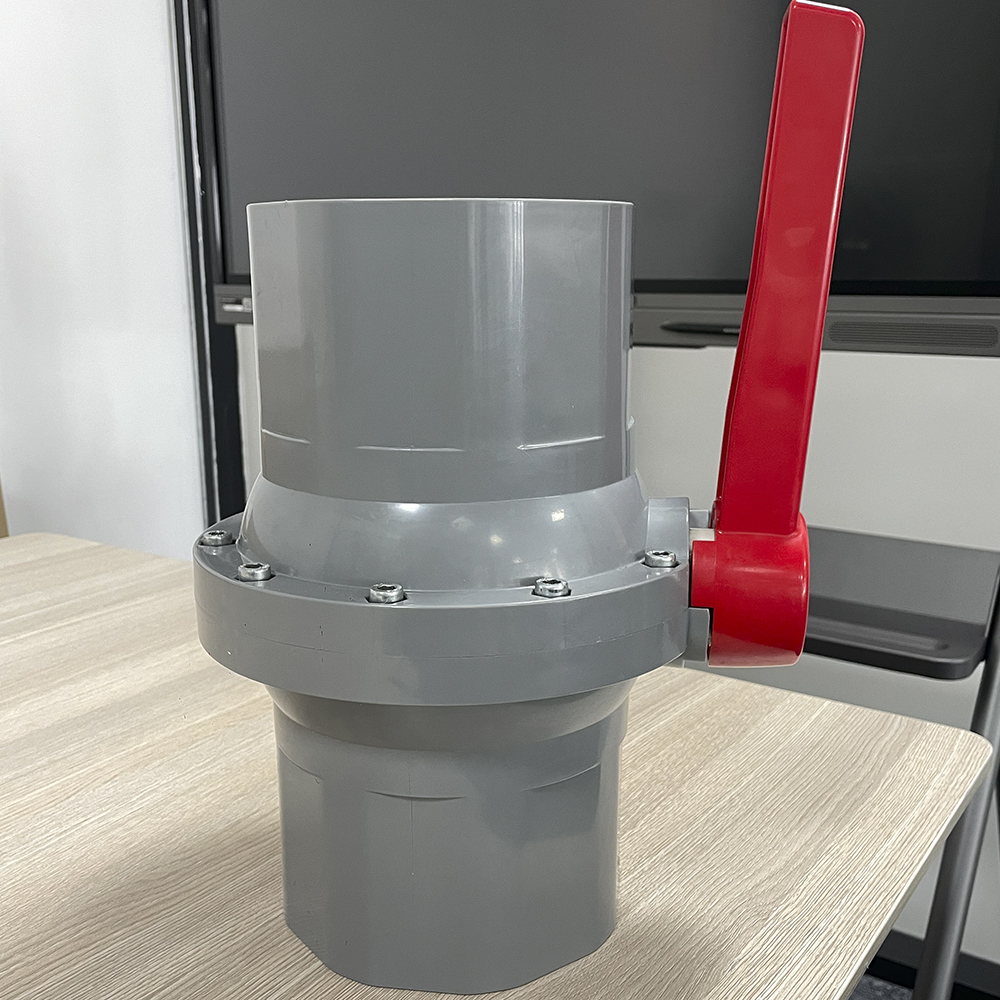

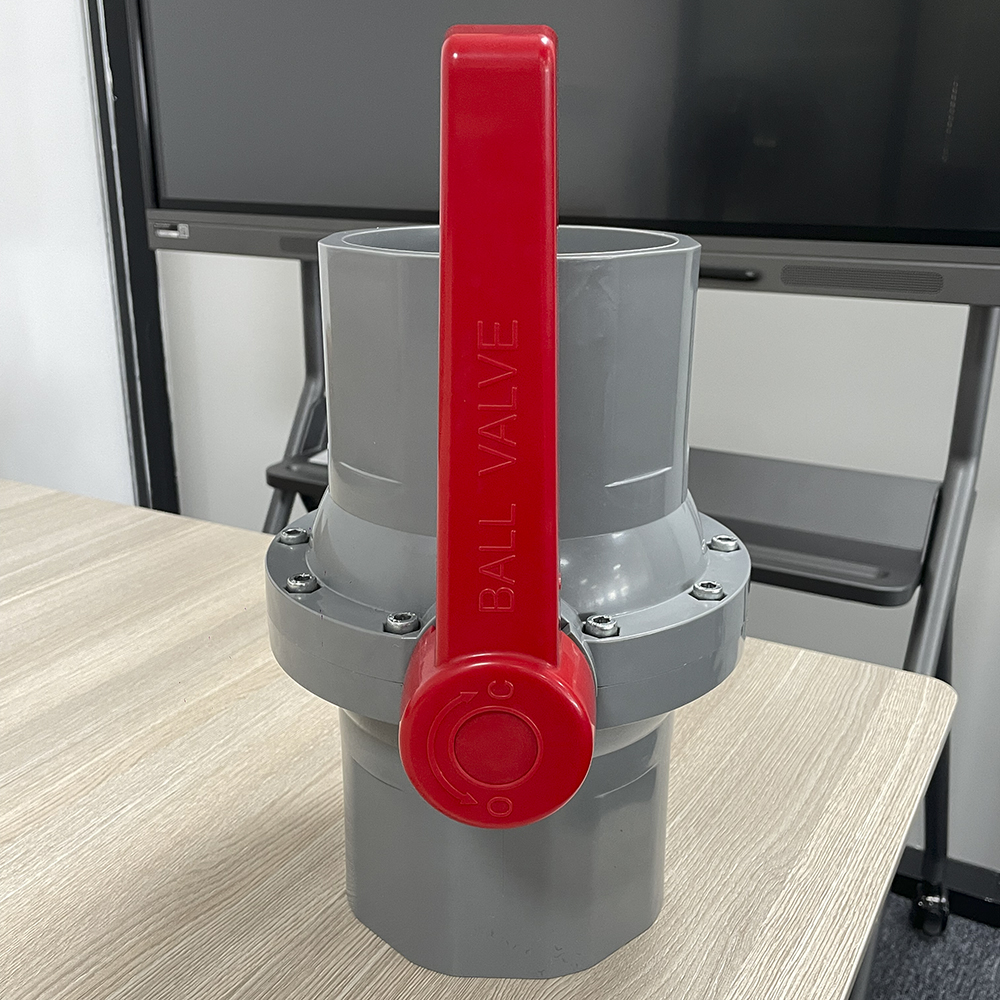

OEM High Quality140MM 160MM 168MM 200MM Nerjaveèi UPVC Gwo Gwosè Boul Valv Pou Pwojè DN200

Deskripsyon kout:

Valv boul
1.Koulè mou & konsepsyon kontra enfòmèl ant
2.Leakproff operasyon;
3.Limyè ak pwent sendika fè enstalasyon fasil
4.Economic kòm chaj transpò pi bon mache & lavi k ap travay long
5.Well ak kontwòl kalite siperyè
6.Environment zanmitay, ki pa toksik
7.Weathering & Abrasion rezistans & ekselan rezistans chimik
8.Widely itilize nan bilding, irigasyon, endistri ak pisin
9.Small lòd akseptab
10.Kliyan konsepsyon & logo yo akeyi

Gwosè:140MM 160MM 168MM 200MM

Fen jwenti:ASTM BS DIN ISO JIS

Presyon travay:PN16

Voye imèl ba nou

Pwodwi detay

FAQ

Tags pwodwi

Lejand ak kat fizik

singleproducimg

Materyèl konpozan

spesifikasyon nan materyèl

NON.	Pati	Materyèl	KANTITE
1	KÒ	UPVC, CPVC	1
2	STEM O-Ring	EPDM,FPM(NBR)	1
3	STEM	UPVC, CPVC	1
4	BOUL	UPVC, CPVC	1

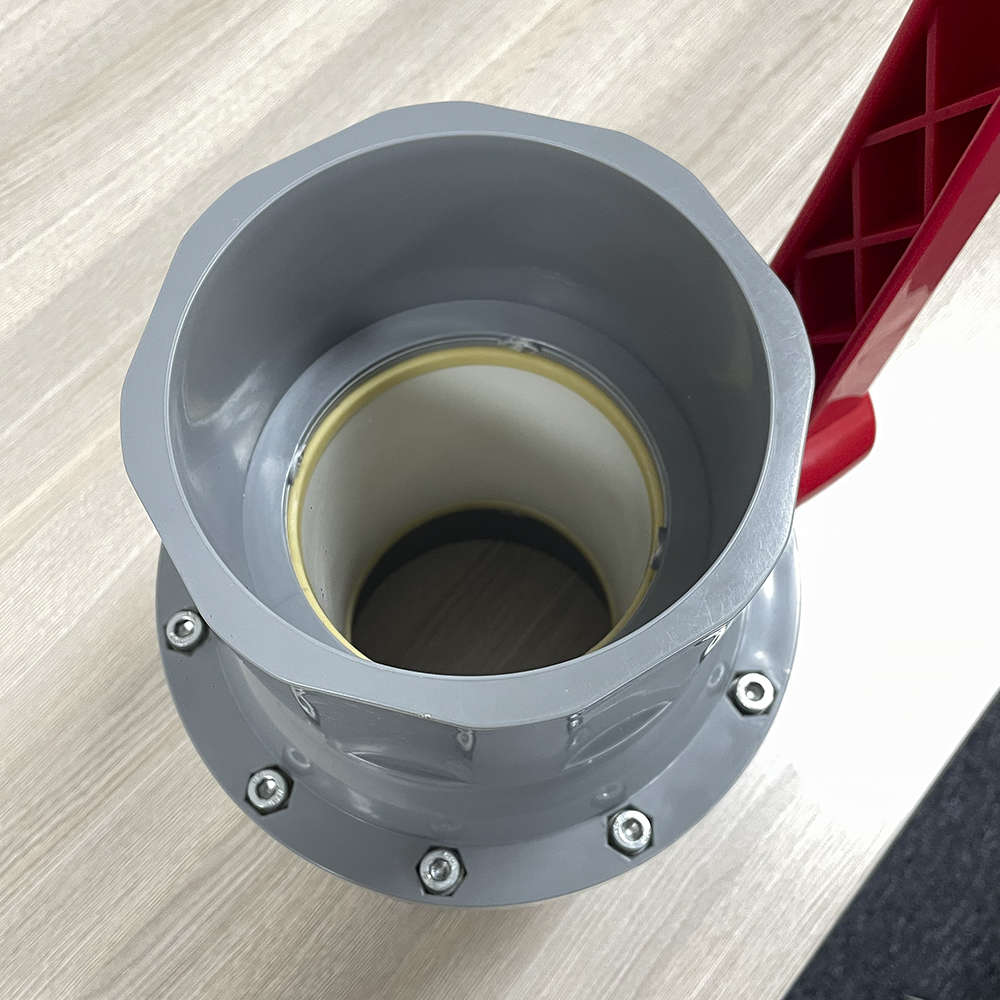

5	SYE SYE	TPE,TPVC,TPO	2
6	CAP	PVC, ABS	1
7	MANCH	PVC, ABS	1

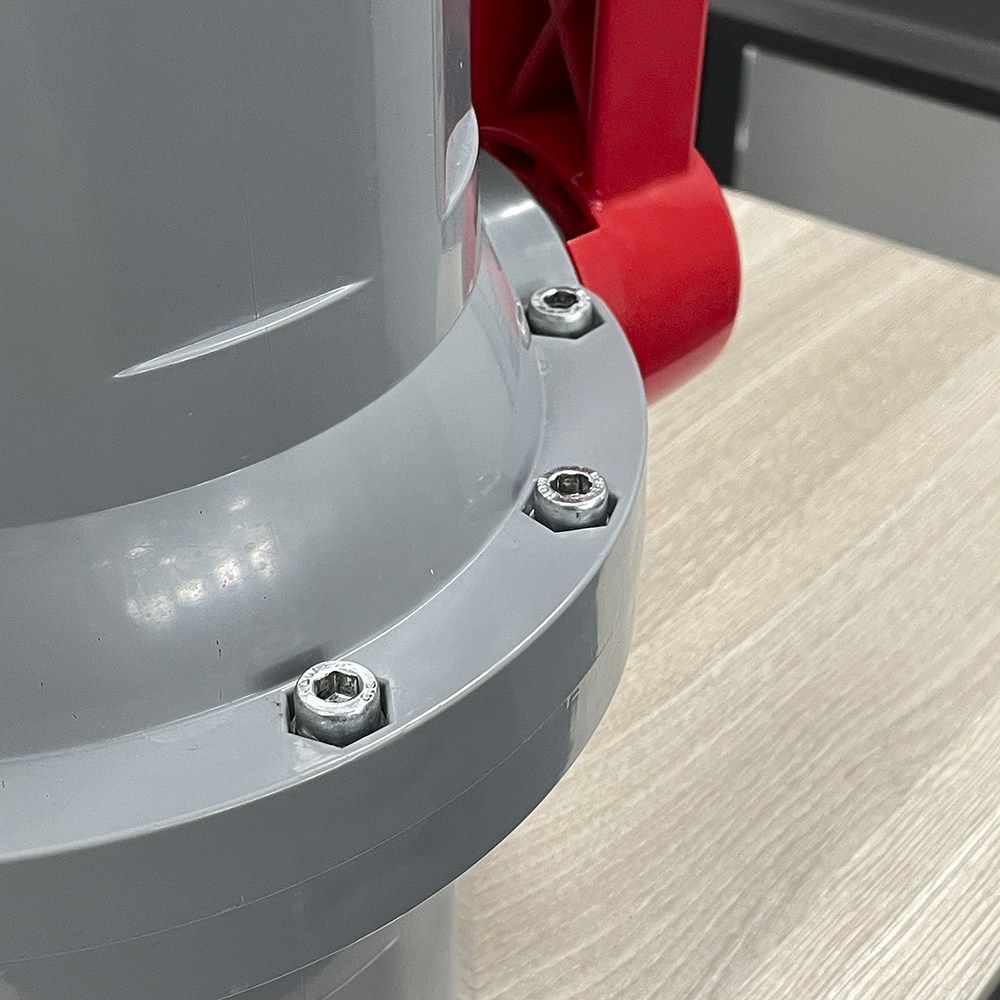

8	VIS	SS304, ASYE	1

Tablo konparezon paramèt gwosè modèl

DIMANSYON												Inite
MODEL	DN		15	20	25	32	40	50	65	80	100
	SIZE		1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	Pous
	thd./nan	NPT	14	14	11.5	11.5	11.5	11.5	8	8	8	mm
	thd./nan	BSPT	14	14	11	11	11	11	11	11	11	mm
	JIS	I	20	20	24	26	30	31	45	48	53	mm
		d1	22.3	26.3	32.33	38.43	48.46	60.56	76.6	89.6	114.7	mm
		d2	21.7	25.7	31.67	37.57	47.54	59.44	75.87	88.83	113.98	mm
	ANSI	I	18	20	24	26	30	31	45	48	53	mm
		d1	21.54	26.87	33.65	42.42	48.56	60.63	73.38	89.31	114.76	mm
		d2	21.23	26.57	33.27	42.04	48.11	60.17	72.85	88.7	114.07	mm
	DIN	I	18	20	24	26	30	31	45	48	53	mm
		d1	20.3	25.3	32.3	40.3	50.3	63.3	75.3	90.3	110.4	mm
		d2	20	25	32	40	50	63	75	90	110	mm
	d		15	19	24	30	34	45	55	70	85	mm
	H		37	55	66	73	81	91	99	121	134	mm
	A		68	80	94	100	110	136	170	210	236	mm
	L		77	91	103	111	123	146	178	210	255	mm
	D		32	37.5	44	52	60	74	93	110	135	mm
